Anping Jiongcan Hardware Mesh Products Co., Ltd
 |
| Place of Origin: | Anping China |
| Brand Name: | Jiongcan |
| Certification: | ISO9001 |
| Model Number: | JC-RD-013 |
| Product Name: | Steel Driveway Grates Grating | Type: | Plain Bar Grating,I Bar Grating |
|---|---|---|---|
| Standard: | ISO9001 | Design Style: | Modern |
| Sample: | Available | Color: | Silver |
| Bearing Bar Pitch: | Custom:12.5-90mm Routine Use:20mm 30mm 40mm | Cross Bar Pitch: | Custom:22-100mm Routine Use:50mm 100mm |
| Surface Treatment: | Black/Untreated (U), Hot Dip Galvanizing (G), Painting (P) | After-sale Service: | Online Technical Support, Return And Replacement |
| Highlight: | 5mm Steel Driveway Grates Grating,ISO9001 Steel Driveway Grates Grating,5mm driveway drain grate |
||

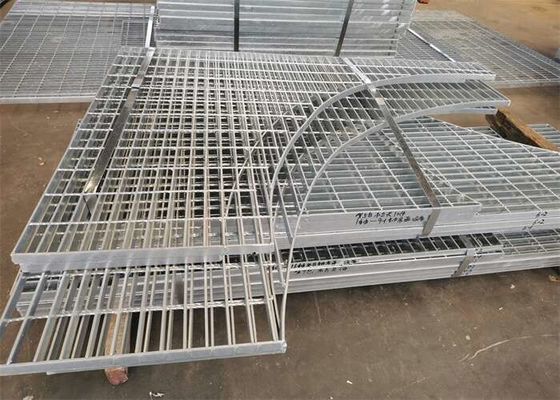

Workshop 5mm Thick Steel Driveway Grates Grating
Workshop Steel 5mm Thick Platform Skid Steel Driveway Grates Grating
Steel Driveway Grates Grating Introduction
Grille plate, also known as steel grille, is welded flat steel and twisted steel, durable, more affordable than other products, it is a kind of bearing flat steel and cross bar in accordance with a certain distance orthogonal combination, through welding or pressure lock to be fixed opening plate steel components.According to the different production methods, it is mainly divided into pressure welding grid plate and pressure lock grid plate.
1. Hot dip galvanized steel grille: it is through the physical reverse so that the inserted grille plate is coated with zinc layer, with beautiful products, acid resistance, alkali resistance, corrosion resistance, rust prevention, long service life and other characteristics, suitable for outdoor.
2. Electric galvanized steel grille: it is made by chemical reaction to form a thin layer of zinc through the plasma exchange of the platform steel grille plate, suitable for dry environment, such as indoor, etc.
3. Spray-painted steel grille plate: corrosion resistance medium, moderate price, color can be optional and other characteristics.
4. Don't handle steel grille plate: cheap price, suitable for indoor and dry environment, but in wet and rainy environment is easy to rust.
Steel Driveway Grates Grating Specifications:
|
item |
value |
|
Products name |
Steel grating |
|
Surface treatment |
Hot Dipped Galvanized |
|
Weld Way |
Welded , Pressure-locked , Swage Locked |
|
Material |
Carbon Steel / Stainless Steel |
|
Type |
Serrated, Plain, I bar grating |
|
Application |
Deck Floor Tree Catwalk Driveway |
Steel Driveway Grates Grating Application:
It is mainly used in power plant platform, sewage treatment plant, maintenance platform, parking platform, ditch cover and step plate, etc.It is mainly divided into power plant steel grid platform, corridor steel grid, Marine steel grid, port wharf, sanitation engineering and other fields.
Steel Driveway Grates Grating Advantages:
1, strength, light structure: the solid grid pressure welding structure makes it has the characteristics of high load, light structure, easy to hoisting and so on
2, beautiful appearance, durable: hot dip zinc surface treatment makes it has a very good anti-corrosion ability, the surface luster is beautiful.
3, ventilation, lighting, heat dissipation, explosion-proof, anti-skid performance is good.
4, no dirt, no rain and snow, no water, self-cleaning, easy to maintain
Production Process:
Pressure welding steel grid plate is made of load flat steel and cross bar according to a certain distance by adopting 200 tons of hydraulic resistance welding automation equipment welding into the original plate, after cutting, opening, wrapping and other processes and products customer requirements.
Load flat steel spacing: the center distance between two adjacent load flat steel, commonly used 30MM, 40MM and 60MM three.
Rod spacing: the center spacing of two adjacent bars is usually 50MM, 100MM, two kinds
Installation Method:
In order to prevent the risk of falling, the installation of the steel grid plate should be fixed by welding as far as possible.
The steel grid plate shall be installed in accordance with the steel structure plate. After installation, it shall not be moved laterally or separated from the supporting frame. The supporting length at both ends of the steel grid plate bearing the flat steel direction on the supporting frame shall not be less than 25 mm for each section.
Platform steel grille plates that require removable and detachable are secured by the mounting fixture of the steel grille plates.
Prevent any shift of the member;
The requirements of the buyer can be supplied by the manufacturer. In addition to the installation clip made of stainless steel material, the installation clip made of carbon steel is treated by hot dip galvanizing. It is suggested that the bolts used for the installation clip are treated by hot dip galvanizing.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: Can you customize our specification?
A: Yes, we can customize according to your specification.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you pay the cost of freight.
