Anping Jiongcan Hardware Mesh Products Co., Ltd
 |
| Place of Origin: | Anping China |
| Brand Name: | Jiongcan |
| Certification: | ISO9001 |
| Model Number: | JC-RD-020 |

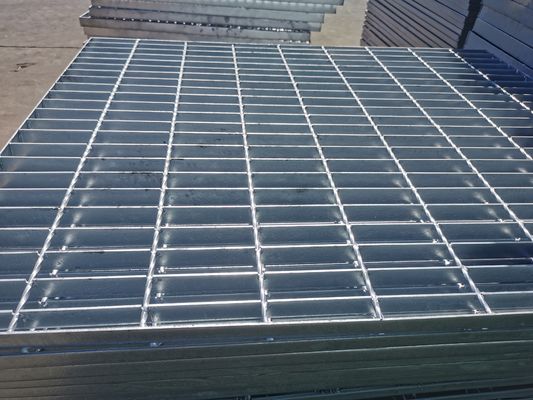

| Product Name: | Stair Treads Steel Grating | Usage: | Step Board Or Platform Board |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Model Number: | G303/20/100 |
| Application: | Platform,drainage Cover | Feature: | Good Corrosion Resistance |
| Length: | Customized According To Customer Requirements | Width: | Customized According To Customer Requirements |
| Thickness: | Custom:3-10mm Routine Use:3mm 4mm 5mm | Surface Treatment: | Hot Dipped Galvanized,Electric Galvanized,paint |
| Highlight: | Stair Treads Steel Grating,ODM Stair Treads Steel Grating,stair grating |
||
The steel grid plate ditch cover is used on the ground of sidewalk, driveway, courtyard or building as the cover of ditch, pipeline ditch, underground passageway, air shaft, lighting well, inspection well, etc.
The steel grid plate groove cover can also be composed of a fixed frame and a movable steel grid plate cover plate, according to the need can be matched with a fastening mechanism or anti-theft device.
G303/30/100 type is generally used as the specification of the steel grid for the cover plate;
Other models are also available.
For the steel grid plate trench cover in public places, the model with the horizontal bar spacing of 50mm should be adopted.
Adopt toothed flat steel and I type steel grates groove cover as agreed by the supply and demand parties.
| Material | Mild Steel (Low Carbon Steel) or Stainless Steel, Q235B, S275JR, A36, SS304,SS316 etc. |
| Bearing bar | The specification of plain type and serrated type bearing bar is 25 x 3 to 100 x 8; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc. |
| Bearing Bar Pitch | 12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended |
| Cross bar | 5mm, 6mm, 8mm |
| Cross bar pitch | 38mm, 50mm, 76mm, 100mm etc. can be customized. |
| Surface Treatment: | Untreated, Painting or Hot DIP Galvanizing |
| Steel grating standard | A) China: YB/T4001-1998 B) USA: ANSI/NAAMM (MBG531-88) C) UK: BS4592-1987 D) Australia: AS1657-1985 E) Japan: JJS |
1, can be added in the peripheral welding kick plate (side plate), decorative plate guard plate, installation connector and other accessories.
2. Flat steel with different specifications of flat steel is used to wrap the edge, or Angle steel, channel steel, square pipe and so on.
3. Handles and hinges can be installed on the platform steel grid plate that needs to be moved or opened frequently.
4, the edge of the welding standard: series 1 every five welding;
Series 2, one for every four welds;
Series 3 welds one per three.
The weld shall be a single fillet welding of not less than 3mm, and the weld length shall be 20mm.
1, under the same load conditions to save steel consumption.
2, can reduce the material of supporting structure accordingly.Save money.
3, simplify the installation process, convenient disassembly, can be reused.
4, no accumulation of rain, snow and dust, free from cleaning and maintenance.
After the customer orders, we will have professional technical personnel to contact with the customer, in order to meet the customer's technical inquiry and production schedule.
