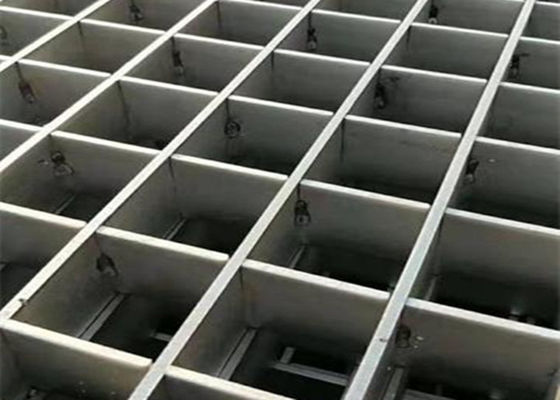

Silver Color 316 Stainless Steel Floor Grating 100mm*6mm For Power Stations

Silver Color 316 Stainless Steel Floor Grating 100mm*6mm For Power Stations

Hot Dip Galvanized Open Steel Floor Grating Welded Steel Grating

Welded Steel Grating Introduction

Platform steel grid plate is a very wide range of steel grid plate products in recent years, this kind of grid plate is the most widely used in various fields of industry, the surface impact has the strongest resistance, especially the bar spacing of 50mm steel grid plate has a strong ability to resist lateral impact.
It is mainly used in factories, workshops, mining, ports of all kinds of platforms can be selected, beautiful style, convenient installation, is a new generation of building products.

Welded Steel Grating Specifications

1, flat steel spacing of 30mm steel grid for the industrial field of the most widely used varieties.
In the series of commonly used steel grates, it has the strongest resistance to surface impact.
2, flat steel spacing of 40mm steel grid for the most economic, the most portable varieties.
In the case of minimum span, it is the most ideal choice.
3, flat steel spacing of 60mm, bar spacing of 50mm steel grid is designed for the application of mining and the development of varieties, it solves the problem of mineral splashing on the surface, often designated for mining processing plants, transfer stations, crushing system of the surface.


Welded Steel Grating Application:

Platform steel grid plate is suitable for alloy, building materials, power stations, boilers, shipbuilding, petrochemical, chemical and general factory houses, municipal construction and other industries, with ventilation and light, anti-skid, strong bearing capacity, beautiful and durable, easy to clean, installation, is a new generation of building products.
Can be added in the peripheral welding kick plate (side plate), decorative plate guard plate, the installation of fittings and other accessories.
Flat steel with different specifications can be used to pack the edge, or Angle steel, channel steel, square pipe, etc.
Handles and hinges can also be installed on steel grids that need to be moved or opened frequently.

Welded Steel Grating Advantages:

1, can be added in the peripheral welding kick plate (side plate), decorative plate guard plate, installation connector and other accessories.
2. Flat steel with different specifications of flat steel is used to wrap the edge, or Angle steel, channel steel, square pipe and so on.
3. Handles and hinges can be installed on the platform steel grid plate that needs to be moved or opened frequently.
4, the platform steel grid edge welding standard is: series 1 every five welding one;
Series 2, one for every four welds;
Series 3 welds one per three.
The weld shall be a single fillet welding of not less than 3mm, and the weld length shall be 20mm.

Welded Steel Grating Process:

The process design of steel grid plate is to arrange the material according to the geometrical information of the sheet according to the size of the original plate, and the ultimate goal is to make the material cutting plan take into account the maximum utilization rate of the material and higher production efficiency.
The principle of steel grid process collocation mainly has the following aspects:
1, all the full plate size or more than the full plate size of the steel grid are in accordance with the length of the priority collocation, collocation size as little as possible and unified, length range control in 5-7 meters.
2. A small number of narrow plates can be arranged in order of width from large to small or from small to large, and then can be combined together in parallel according to length.
3. When the width overflows, the raw material cross bar is used for edge welding, instead of welding another plate.
4, double rod welding machine each pressure welding 2 bars, can not appear odd circumstances.
5, between the board and the board to retain the sawing size, if not enough need to leave a cross bar.
6, for a set of drawings need to be strictly classified.
If multiple drawings are more than 200 square meters, they need to be matched together. If less than 200 square meters, it can be considered to match them with small size drawings.
7, for the special-shaped steel grid, need to consider decomposition and docking, in order to achieve the most economical material.
8, for flat steel spacing 60 mm plate can be used 30 mm spacing comb clip for raw material production.

Welded Steel Grating installation:

The connection mode of steel grid plate is fixed and installed with buckle connector, which is composed of three parts.
Hot Dip Galvanized Steel Grating Package delivery:
Delivery when will we have a professional inspectors to check the quality of the product is unqualified, such as qualified will paste the qualified product certificate, and then fixed by shipping packaging, packaging with the steel plate on the metal tray, and then fixed with metal packing tape, finally wrapped by plastic film packaging, general each pallet packing 1-2 tons of cargo, in order to convenient for unloading and storage after the arrival of the goods. The unqualified products will be recalled by our quality inspector.


 Pre-sale service:

After the customer orders, we will have professional technical personnel to contact with the customer, in order to meet the customer's technical inquiry and production schedule.
