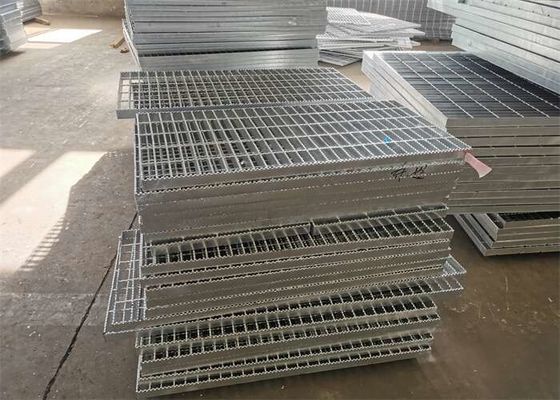

Toothed Galvanized Steel Driveway Grates Grating Aluminum 6063 For Stadium Drain
Hot Dip Galvanized Toothed Stadium Drain Steel Driveway Grates Grating
Steel Driveway Grates Grating Introduction
The steel grid plate is made of flat steel in accordance with a certain distance and cross bar (twisted square steel, square steel, round steel, flat steel, etc.), and welded into a kind of steel products with a square grid in the middle. The steel grid plate is mainly used to make the ditch cover plate, the steel structure platform plate, the stepping plate of the steel ladder, etc.
The bar is generally made of twisted square steel, and the steel grid is generally made of carbon steel. The surface is hot dip galvanized, which can prevent oxidation.
It can also be made of stainless steel.
The steel grid has the properties of ventilation, lighting, heat dissipation, anti-skid, explosion proof and so on.
Galvanized steel grid plate by flat steel width 20mm - 200mm thick 2.5mm - 20mm and other welded steel grid plate for the post-heavy duty galvanized steel grid plate.
It is suitable for large cargo yard, wharf, coal mine road and bridge, etc. It can carry large truck through.
Galvanized steel grid plate (flat steel spacing 40mm) flat steel spacing 40mm steel grid plate for the most economic, the most portable varieties in the smaller span of the occasion, is the most ideal choice.
Heavy duty galvanized steel grid plate is formed by flat steel width 65mm - 200mm thick 5mm - 20mm and other welded steel grid plate for the post heavy duty galvanized steel grid plate.
It is suitable for large cargo yard, wharf, coal mine, road and bridge, etc. It can carry large truck through.
Galvanized steel grating plate (flat steel spacing 60mm) flat steel spacing 60mm horizontal bar for 50mm galvanized steel grating plate is suitable for mining and mining industry to solve the problem of mineral splashing on the surface of the plate,
Often designated for the mining processing plant galvanized steel grating (flat steel spacing 30mm) flat steel spacing 30mm galvanized steel grating for the industrial field of the most widely used varieties.
In the commonly used galvanized steel grid series, has the strongest resistance to surface impact.
Galvanized steel grating (I type flat steel) by I type flat steel welded steel grating has the characteristics of light weight, heavy load, etc.
Galvanized steel grid is suitable for all kinds of occasions, especially walkways, visiting platforms, etc.
The use of galvanized steel grid.
Steel Driveway Grates Grating Specifications:
| Grating Type |
Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Process technical |
Machine press welding,hand welding |
| Material |
Steel,Stainless steel 304 /316,Aluminum 6063 T5/T6 |
|
Bearing Bar
(width*thickness)
|
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; |
| Bearing Bar Pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc |
| Cross Bar Size |
6x6, 8x8mm (twisted bar or round bar) |
| Cross Bar Pitch |
38.1, 50, 60, 76, 80, 100,120mm |
| Surface treatment |
Hot dip galvanized (HDG),Painting,Untreated,Powder coated |
| Application |
Trench cover,drainage cover,walkway,platform,stair step |
| Lead time |
15-45 days |
Steel Driveway Grates Grating Application:
Galvanized steel grates are suitable for alloys, building materials, power stations, boilers.
Shipbuilding.
Petrochemical, chemical and general industrial plants, municipal construction and other industries, with ventilation, light, anti-skid, strong bearing capacity, beautiful and durable, easy to clean, easy installation and other advantages.
New bridge steel plate has been widely used in all walks of life at home and abroad.
Steel Driveway Grates Grating Advantages:
1, strength, light structure: the solid grid pressure welding structure makes it has the characteristics of high load, light structure, easy to hoisting and so on
2, beautiful appearance, durable: hot dip zinc surface treatment makes it has a very good anti-corrosion ability, the surface luster is beautiful.
3, ventilation, lighting, heat dissipation, explosion-proof, anti-skid performance is good.
4, no dirt, no rain and snow, no water, self-cleaning, easy to maintain
Production Process:
Pressure welding steel grid plate is made of load flat steel and cross bar according to a certain distance by adopting 200 tons of hydraulic resistance welding automation equipment welding into the original plate, after cutting, opening, wrapping and other processes and products customer requirements.
Load flat steel spacing: the center distance between two adjacent load flat steel, commonly used 30MM, 40MM and 60MM three.
Rod spacing: the center spacing of two adjacent bars is usually 50MM, 100MM, two kinds
Installation Method:
In order to prevent the risk of falling, the installation of the steel grid plate should be fixed by welding as far as possible.
The steel grid plate shall be installed in accordance with the steel structure plate. After installation, it shall not be moved laterally or separated from the supporting frame. The supporting length at both ends of the steel grid plate bearing the flat steel direction on the supporting frame shall not be less than 25 mm for each section.
Platform steel grille plates that require removable and detachable are secured by the mounting fixture of the steel grille plates.
Prevent any shift of the member;
The requirements of the buyer can be supplied by the manufacturer. In addition to the installation clip made of stainless steel material, the installation clip made of carbon steel is treated by hot dip galvanizing. It is suggested that the bolts used for the installation clip are treated by hot dip galvanizing.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: Can you customize our specification?
A: Yes, we can customize according to your specification.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you pay the cost of freight.
