| Place of Origin: | Anping China |
| Brand Name: | Jiongcan |
| Certification: | ISO9001 |
| Model Number: | JC-RD-015 |
| Product Name: | Catwalk Steel Grating | Surface Treatment: | Hot Dipped Galvanized/Cold Galvanizing |
|---|---|---|---|
| Material: | Carbon Steel, Mild Steel | Certificate: | ISO9001:2008 |
| Shape: | Square | Warranty: | 1 Year |
| Type: | Plain Bar Grating | Cross Bar Pitch: | Online Technical Support |
| Bearing Bar Pitch: | 30, 40, 50, 60, 80and 90mm | Application: | Floor,steel Structure,Industrial Platform,trench,bridge |
| Highlight: | Sawtooth Catwalk Steel Grating,Catwalk Steel Grating Platform,Sawtooth Platform Steel Grating |
||

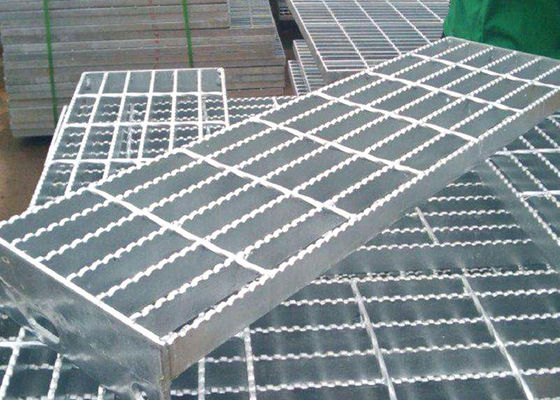

Anti - skid steel grating plate is made by welding of serrated flat steel and twisted steel on one side, which has all the characteristics and uses of ordinary anti - skid steel grating plate also has strong anti - skid ability, especially suitable for stairs, wet, slippery occasions, northern snow and ice covered for a long time and offshore oil production platforms.
Anti-skid steel grillage is economical and practical: the optimized waveform reinforced structure, under the same bearing deformation condition, the material consumption is only half of the pressure welded steel grillage, effectively reducing the dead weight of the structure.
|
SPECIFICATIONS FOR SERRATED ANTI-SLIP STEEL GRATING CATWALK PLATFORM
|
|||
|
Size
|
Bearing bar p
|
25x3, 25x5, 32x5mm etc.
|
Customized
|
|
Cross bar pitch
|
30, 38, 50, 76, 100mm etc.
|
Customized
|
|
|
Cross bar dimension
|
5x5, 6x6, 8x8mm etc.
|
Customized
|
|
|
Sign of the shape of bearing bars
|
F
|
Plat type
|
can be omitted in the symbol
|
|
S
|
serrated type
|
-
|
|
|
I
|
I-type
|
-
|
|
|
Sign of surface treatment
|
G
|
Hot galvanized
|
can be omitted
|
|
P
|
Painted
|
-
|
|
|
U
|
Untreated
|
-
|
|
1. Height (or width) and thickness of non-slip steel plate flat steel;Flat steel height is usually 20mm, 25mm, 30mm, 32mm, 35mm, 40mm, 45mm, 50mm, etc.The thickness of steel plate flat steel is 3mm, 4mm, 5mm;
2, the surface treatment of anti-slip steel grid: hot dip galvanizing, cold galvanizing, electroplating, spray painting, dip anti-rust oil, dip plastic, no treatment.
3, anti-slip steel plate loading flat steel spacing: two adjacent loading flat steel center distance, commonly used 30mm, 40mm, sometimes 60mm;
4, anti-slip steel grid bar spacing: the center spacing of two adjacent bars is usually 50mm, 100mm two, can be produced according to customer requirements.
Steel grates are suitable for alloys, building materials, power plants, boilers. Shipbuilding.
Petrochemical, chemical and general industrial plants, municipal construction and other industries, with ventilation, light, anti-skid, strong bearing capacity, beautiful and durable, easy to clean, easy installation and other advantages.
Steel plate has been widely used in all walks of life both at home and abroad, mainly used for industrial platform, staircase pedal, banister, channel floor, railway bridge service, high tower platform, the drain cover, manhole covers, road barrier, three-dimensional parking lot, organs, schools, factories, enterprises and institutions, the stadium fence, garden villa, also can be used as a residence outside the window, balcony guardrail, highway, rail barrier, etc.
Catwalk Steel Grating Advantages
(1) It is welded with serrated flat steel on one side. In addition to the characteristics and uses of ordinary steel grates, it also has strong anti-skid ability, especially suitable for wet and slippery places, offshore oil production platforms, etc.;
(2) the use of hot dip galvanized surface treatment, with a strong rust resistance,30 years free of maintenance and replacement.
This product can be used as a hinge connection between the drain cover and the frame, which is anti-theft, safe and easy to open.
(3) the use of high strength carbon steel, so that the steel grid has a very high strength: strength and toughness is much higher than cast iron, can be used for wharves, airports and other large span and heavy load environment;
(4) large mesh with the best drainage: water leakage area of 83.3%, more than twice that of cast iron;
(5) beautiful appearance: simple lines, silver appearance, modern idea, saving investment with materials: large span, heavy load, lower than the price of cast iron;
It can also save the cost of replacement of cast iron covers due to theft or crushing.
the fillet welding with the length of the weld not less than 20mm and the height not less than 3mm on the first flat steel at each corner of the steel grid plate.
When ordering mounting clips, please specify the type, quantity and material required.
The installation can be fixed by welding and clamping.
Welding fixation is suitable for permanent parts that do not need to be disassembled, such as the platform around the equipment, and the installation clip has the characteristics of not destroying the zinc layer and convenient disassembly.
Mounting clamps are suitable for all series of steel grates, which are composed of upper clamps, lower clamps and M8 bolts.
The method of fixing the installation clip is: each plate adopts at least four sets of installation clip, and it is best to install several more supports on the larger plate span.
Stainless steel mounting clips are available to meet customer requirements.
Delivery when will we have a professional inspectors to check the quality of the product is unqualified, such as qualified will paste the qualified product certificate, and then fixed by shipping packaging, packaging with the steel plate on the metal tray, and then fixed with metal packing tape, finally wrapped by plastic film packaging, general each pallet packing 1-2 tons of cargo, in order to convenient for unloading and storage after the arrival of the goods. The unqualified products will be recalled by our quality inspector.
