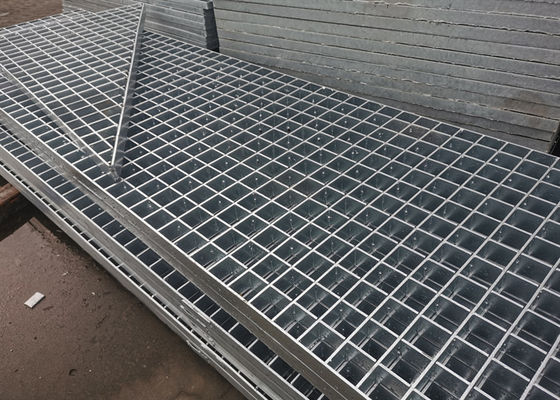

Q235 Steel Anti Rust Metal Grating Platform Flat Bar Type 7mm Thick
7mm Thick Hot Dip Galvanized Oil Refinery Skid Proof Platform Steel Grating
Platform Steel Grating Product Introduction
Platform Steel Grating is also called steel grid plate platform or platform steel grid plate, platform grid plate is an application range of its steel grid plate products, platform steel grid products are generally applied to the use of steel structure or cement structure platform.It is mainly used for various platforms in factories, workshops, mining and ports. It is beautiful and easy to install. It is a new type of building product.People often say that hot dip galvanized steel grid platform corridor is the platform of the steel grid.Platform steel grid plate (steel grid plate) is often connected with the steel structure up and down the use of the step plate.
Platform Steel Grating Product Specifications
|
Learn more about the main components of metal bar grating
|
|
Span:
|
Total span.
|
|
Width:
|
Panel width.
|
|
Bearing Bars:
|
Load carrying main element.
|
|
Bearing Bars Spacing:
|
Measure from center-to-center of the bearing bars in 1/16″ increments. Standard spacing for industrial flooring is 19/16″(1-3/16″) on center. Other popular spacings are 15/16″, 11/16″, 1/2″, and 7/16″ on center.
|
|
Bearing Bars Depth:
|
Ranges from 3/4″ to 7″ depending on anticipated loads.
|
|
Bearing Bars Thickness:
|
Ranges from 1/8″ to 1/2″ depending on anticipated loads.
|
|
Cross Bars:
|
Used to Secure the position of bearing bars.
|
|
Cross Bar Spacing:
|
Measured from center-to-center of cross bars in 1″ increments. Standard spacing is 4″ or 2″ on center.
|
1. Flat steel and bar are made of Q235 material of GB/T700, and other materials can be made according to the agreement between the supply and demand parties.Such as the Q345 material used for boilers, chemical, offshore wharf stainless steel 304, 316, 316L material.
2. Flat steel is made of hot rolled flat steel or hot rolled or cold rolled steel strip after longitudinal shear.
3. The allowable deviation of the flat steel size conforms to the provisions of the steel grid standard YB/T4001.1-2007.
4. Tooth flat steel is made of hot rolled flat steel or hot rolled or cold rolled steel strip after slitting and punching.The tooth size should not be less than 5 teeth per 100mm.
Platform Steel Grating Product Application
The application scope of platform steel grid, general factories, coal mines, offshore drilling platforms, oil refineries, vinyl plants, power plants, coal mines, power stations, workshops, ships and all kinds of natural gas chemical platform can be selected, beautiful and durable, easy installation, is a new type of building products to update.By welding Angle iron and hinge on the frame of the steel grid on the platform, many special occasions can be used, such as the cover plate of the air outlet and the trench.
Platform Steel Grating Product Advantages
1, can be welded around the steel grid plate kick plate (side plate), decorative plate guard plate, install fittings and other accessories;
2. Flat steel with different specifications from the flat steel grid, or Angle steel, channel steel, square pipe, etc.;
3. Handles and hinges can be installed on the platform steel grid plate that needs to be moved or opened frequently;
4, in general, the platform steel grid edge welding standard is: series 1 (flat steel spacing of 30mm) each five welding one;
Series 2 (flat steel spacing of 40mm) for each four welding;
Series 3 (flat steel spacing of 60mm) each three welded.
The weld shall be a single fillet welding of not less than 3mm, and the weld length shall be 20mm.
5, convenient for pedestrians to walk, prevent heavy objects from falling, light, ventilation
6, hot dip galvanizing corrosion resistance, oxidation resistance, long service life
7, the weight is relatively light, low cost
8, easy installation, can be welded fixed or screw fixed, solder joint is firm, not easy to open welding
Package delivery:
Delivery when will we have a professional inspectors to check the quality of the product is unqualified, such as qualified will paste the qualified product certificate, and then fixed by shipping packaging, packaging with the steel plate on the metal tray, and then fixed with metal packing tape, finally wrapped by plastic film packaging, general each pallet packing 1-2 tons of cargo, in order to convenient for unloading and storage after the arrival of the goods. The unqualified products will be recalled by our quality inspector.
