Anping Jiongcan Hardware Mesh Products Co., Ltd
 |
| Place of Origin: | Anping China |
| Brand Name: | Jiongcan |
| Certification: | ISO9001 |
| Model Number: | JC-RD-046 |
| Product Name: | Catwalk Steel Grating | Secondary Or Not: | Non-secondary |
|---|---|---|---|
| Place Of Origin: | HeBei China | Color: | Silver |
| Shape: | Square | Standard: | ISO9001 |
| Function: | Waterproof Fireproof | After-sale Service: | Online Technical Support |
| Trait: | Ventilation, Lighting, Heat Dissipation, Anti-slip, Explosion Proof | Application: | Floor,steel Structure,Industrial Platform,trench,bridge |
| Highlight: | Galvanized Catwalk Steel Grating,ISO9001 Catwalk Steel Grating,catwalk metal grating |
||

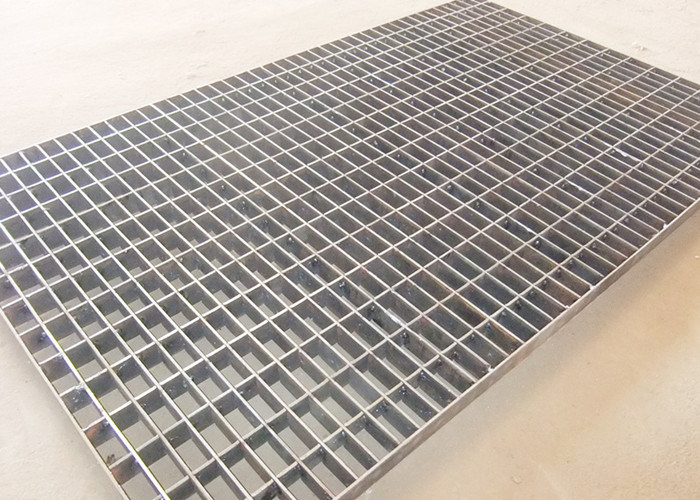

Catwalk Steel Grating is also called platform steel grid, platform grid plate, is a kind of steel products with flat steel in accordance with a certain spacing and cross bar, and welded into the middle with a square grid, mainly used to do drain cover plate, steel structure platform plate, steel ladder step plate and so on. The bar is generally made of twisted square steel. Platform steel grid plate is a very widely used steel grid products in recent years, this kind of steel grid plate is the most widely used in various fields of industry, the surface impact has the strongest resistance, especially the bar spacing of 50mm steel grid plate has a strong ability to resist lateral impact. It is mainly used in factories, workshops, mining, ports of all kinds of platforms can be selected, beautiful style, convenient installation, is a new generation of building products.
| Material | Low carbon, Middle carbon,stainless steel ,Q 235 |
| Bearing bar type | Flat bar ,serrated bar ,I bar,etc |
| Bearing bar size (loading bar size) | 15,20,25,30,33,38,40,50,60,80 mm,etc |
| Cross bar pitch | 24 to 200 mm |
| Cross bar size | 6*6,8*8,10*10,12*12 mm, etc. |
| Surface treatment | Hot dipped galvanized ,painted,self -color ,etc |
| Grating standard | YB/T4001.1-2007
ANSI/NAAMM(MBG531-88)
BS4592-1987
AS1657-1985
|
| Feature | Fine appearance,anti-corrosive,simple installation ,lightweight ,high load,anti-skid,prevent dirt deposition,ventilation,anti-explosion |
| Application | Floor walkway,industrial platform ,stair tread,metal ceiling |
| Package | Pallets in containers packed by steel strap and worthy sea shipping or according to the customers' requirements |
| Product capacity | 5 days for 200 ton |
Has been widely used in all walks of life both at home and abroad, mainly used for industrial platform, staircase pedal, banister, channel floor, railway bridge service, high tower platform, the drain cover, manhole covers, road barrier, three-dimensional parking lot, organs, schools, factories, enterprises and institutions, the stadium fence, garden villa, also can be used as a residence outside the window, balcony guardrail, highway, rail barrier, etc.
Catwalk Steel Grating Advantages
Chemical and general industrial plant, municipal construction and other industries, with ventilation, light, anti-skid, strong bearing capacity, beautiful and durable, easy to clean, easy to install and other advantages.
the fillet welding with the length of the weld not less than 20mm and the height not less than 3mm on the first flat steel at each corner of the steel grid plate.
When ordering mounting clips, please specify the type, quantity and material required.
The installation can be fixed by welding and clamping.
Welding fixation is suitable for permanent parts that do not need to be disassembled, such as the platform around the equipment, and the installation clip has the characteristics of not destroying the zinc layer and convenient disassembly.
Mounting clamps are suitable for all series of steel grates, which are composed of upper clamps, lower clamps and M8 bolts.
The method of fixing the installation clip is: each plate adopts at least four sets of installation clip, and it is best to install several more supports on the larger plate span.
Stainless steel mounting clips are available to meet customer requirements.
Delivery when will we have a professional inspectors to check the quality of the product is unqualified, such as qualified will paste the qualified product certificate, and then fixed by shipping packaging, packaging with the steel plate on the metal tray, and then fixed with metal packing tape, finally wrapped by plastic film packaging, general each pallet packing 1-2 tons of cargo, in order to convenient for unloading and storage after the arrival of the goods. The unqualified products will be recalled by our quality inspector.
