Anping Jiongcan Hardware Mesh Products Co., Ltd
 |
| Place of Origin: | Anping China |
| Brand Name: | Jiongcan |
| Certification: | ISO9001 |
| Model Number: | JC-RD-014 |

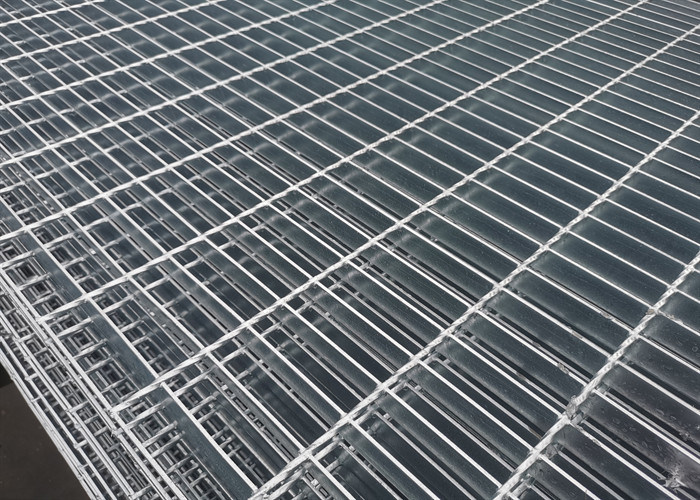

| Product Name: | Galvanised Drain Grate | Length: | 600mm--5500mm |
|---|---|---|---|
| Bearing Bar Pitch: | 30,40,60mm Are The Most Popular | Cross Bar Pitch: | 50,100mm Are The Most Popular |
| Steel Bar: | 30x3mm 32x5mm 40x5mm | After-sale Service: | Online Technical Support |
| Thickness: | 3-10mm | Certificate: | ISO9001-2008 |
| Size: | 3'x20', 3'x24', 3'x30', 1000x1000, 1000x5800 | Application: | Floor,steel Structure,Industrial Platform,trench,bridge |
| Highlight: | 600mm Galvanised Drain Grate,Parking Lot Galvanised Drain Grate,600mm galvanized drainage grates |
||
Galvanised Drain Grate is also known as "ditch cover "," manhole cover plate ", "manhole cover" initially it is made of cement, cast iron, after the normal use of it is easy to damage, large replacement cost.Therefore, Hefei grid is made of steel grid plate pressure welding, which has the advantages of simple construction and installation, light weight, good bearing capacity, strong impact resistance, excellent drainage, beautiful use of the product surface after hot dip galvanizing treatment, rust prevention and corrosion prevention, and incomparable advantages of cast iron ditch cover plate.The steel grid plate ditch cover is used on the ground of sidewalk, driveway, courtyard or building as the cover of ditch, pipeline ditch, underground passageway, air shaft, lighting well, inspection well, etc.The gutter cover usually consists of a fixed frame and a movable gutter cover.According to the need can be equipped with a fastening mechanism or anti-theft device.
|
Products name |
YB/T4001.1-2007 standard welded building materials hot dipped galvanised driveway steel grates |
|||
|
Type of steel grating |
W-pressure welded grating; L- pressure locked grating; C- socket welding grating |
|||
|
Surface treatment |
G- hot dip galvanizing (G is usually omitted); P-painting; U-untreated |
|||
|
Spacing of bearing bars |
30-60mm |
|||
|
Sizes of bearing bar |
20*3-60*5 |
|||
|
Spacing of cross bars |
50-100mm |
|||
|
Shape of bearing bar |
F-plain surface (F is usually can be omitted); S-serrated surface; I-the section is of "I" type. |
|||
|
Packing |
1) LCL(less than one container load): packed with plastic film then on the pallet |
|||
|
MOQ |
Min trial order 25 ton each thickness, 1x20' per delivery. |
|||
|
Payment |
30% despoit in advance,70% after recepit of B/L copy.100% L/C is available. |
|||
|
Remarks: Other sizes also can be customized according to customers’ requirement. |
||||
Widely used in municipal roads, garden facilities, residential areas, schools, stadiums and other different places.According to the use of different occasions, different specifications of trench (well) cover plate, the surface can be hot dip zinc, cold galvanized (electroplating) or no treatment.Ditch cover plate is mainly used in some factories and high-grade residential areas, which is mainly because the cement trench cover is often crushed, and the road surface is also damaged.Therefore, the trench cover plate made of steel grid plate is suitable for different load loads.
Galvanised Drain Grate Advantages:
1. the use of hot dip galvanized surface treatment: has a strong rust resistance, 30 years free of maintenance and replacement.
2. Domestic advanced cover design: the drain cover made of steel grid plate is hinged with the frame, which is anti-theft, safe and easy to open
3. the product appearance is beautiful: simple lines, silver appearance, modern idea
4. large mesh with drainage: water leakage area of 83.3%, more than twice as much as cast iron.
5. save investment with materials: large span, heavy load, lower than the price of cast iron;
It can also save the cost of replacement of cast iron covers due to theft or crushing.
6. he use of high strength carbon steel, so that the steel plate has a very high strength: strength and toughness is much higher than cast iron, can be used for wharves, airports and other large span and heavy load environment.
7. product variety: to meet the needs of different environment, load, span and shape, can be provided according to customer size and shape.
Delivery when will we have a professional inspectors to check the quality of the product is unqualified, such as qualified will paste the qualified product certificate, and then fixed by shipping packaging, packaging with the steel plate on the metal tray, and then fixed with metal packing tape, finally wrapped by plastic film packaging, general each pallet packing 1-2 tons of cargo, in order to convenient for unloading and storage after the arrival of the goods. The unqualified products will be recalled by our quality inspector.
After the customer orders, we will have professional technical personnel to contact with the customer, in order to meet the customer's technical inquiry and production schedule.
After the goods are shipped, we will have professional technical personnel to docking with customers, so that when the goods arrive, there will be unloading problems, storage and installation problems. Our technical personnel will reply online within 24 hours. If there is a problem, we will docking within 2 hours and help customers solve the problem within 5 hours.
Anping County Jiongcan Hardware Mesh Products Co., Ltd. was founded in 2020, formerly known as Hebei Kunfa Steel Grid Factory, the company began to engage in the production and installation of steel grids from 2013, has a very rich experience in the production of steel grids.
The main products are: platform steel grating, sewage treatment plant steel grating, power plant steel grating, stair step plate, hot-dip galvanized steel grating plate and other types of steel grating, fence net, fence, pointed fence,airport fence net, yard wall fence and other protective facilities.
